Badar Aluminium, based in Manama, Bahrain, stands out as a top manufacturer and supplier of high-quality Aluminium Sheets and Plates, tailored to meet a wide range of industrial and commercial needs. By utilizing premium-grade aluminium and cutting-edge fabrication techniques, the company produces products renowned for their impressive strength, resistance to corrosion, and precise dimensions. Badar Aluminium offers sheets and plates in various alloys, tempers, and thicknesses, making them ideal for applications in construction, fabrication, automotive, and marine sectors. With a strong focus on quality assurance, timely delivery, and customer satisfaction, Badar Aluminium has built a solid reputation both in Bahrain and on the international stage.

Aluminium Sheets and Plates are typically crafted from alloys in the 1000, 3000, 5000, and 6000 series, which include elements like magnesium, manganese, and silicon to boost strength and corrosion resistance. These materials boast excellent mechanical properties, such as good tensile strength, outstanding formability, and high thermal and electrical conductivity. Depending on the specific alloy and temper, they also offer remarkable weldability, fatigue resistance, and stability under stress. The combination of lightweight features and strong performance makes aluminium sheets and plates perfect for both structural and high-precision applications.

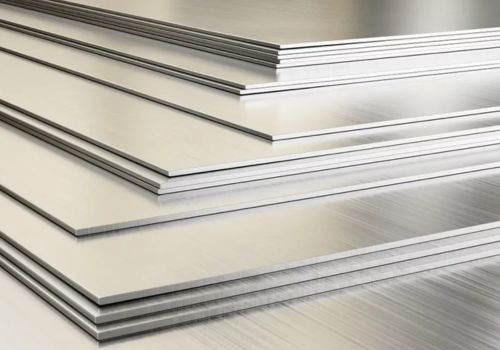

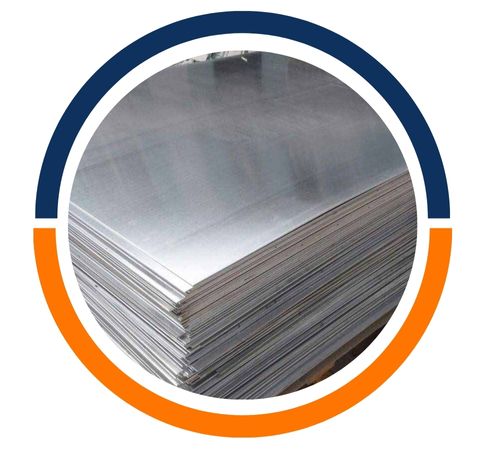

Aluminium Alloy Sheets

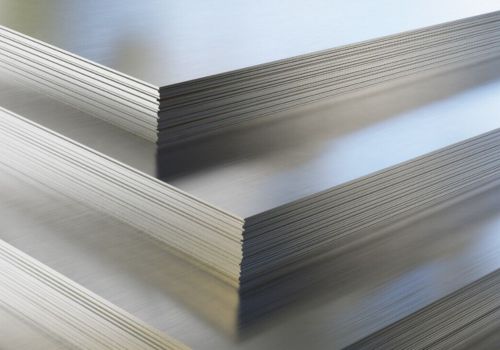

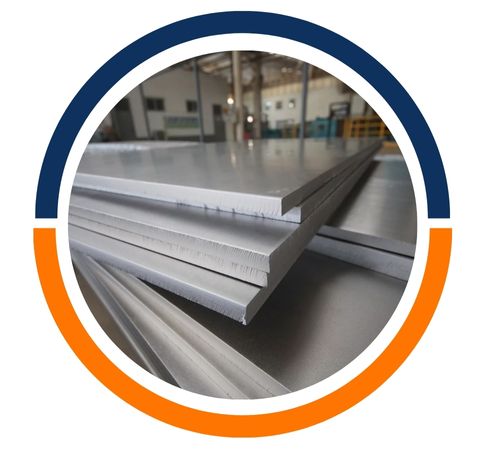

Aluminium Hot Rolled Sheets

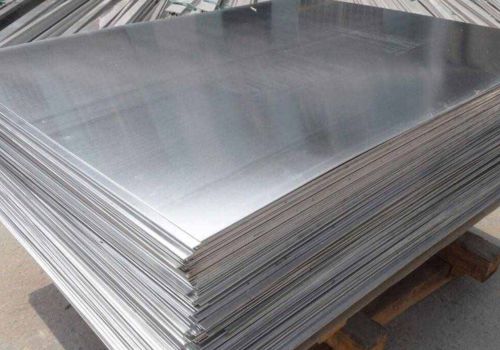

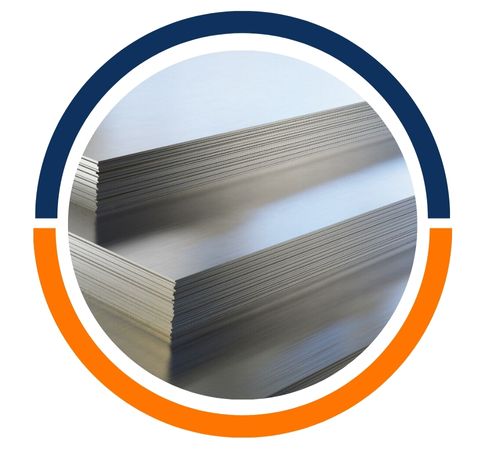

Aluminum Cold Rolled Sheets

Alumnium Clad Sheets Distributor in Bahrain, Al Perforated Plates Supplier in Manama, Aluminium Alloy Sheet Weight Chart, Al Plates Exporter in Sitrah, Aluminium Polished Sheets Manufacturer in Riffa, Aluminium Shim Sheet and Plate Price List in Bahrain, Alumnium Chequered Plates Sizes in mm, Alumnium Alloy Hot Rolled Plate Distributor in A'ali, Al Sheets and Plates Hamad Town

Specifications of Aluminium Sheets and Plates

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Chemical Compositions of Aluminium Sheets and Plates

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Mechanical Properties of Aluminium Sheets and Plates

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium Sheets and Plates

Largest Aluminium Sheets and Plates Manufacturer and Exporter in Manama, Bahrain

Badar Aluminium based in Manama, Bahrain is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium Sheets and Plates

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Are Custom Sizes Available For Aluminium Sheets and Plates?

Yes, we offer custom sizes for Aluminium Sheets and Plates to meet specific project needs. Our team at Badar Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@badaraluminium.com

Uses of Aluminium Sheets and Plates

Aluminium Sheets and Plates are versatile materials used across a wide range of industries. In construction, they are employed for roofing, cladding, and structural components due to their durability and corrosion resistance. The automotive and aerospace industries rely on aluminium for lightweight body panels and structural parts, enhancing fuel efficiency. In marine applications, they are valued for their resistance to saltwater corrosion. Additionally, aluminium sheets and plates are widely used in packaging, electrical enclosures, cookware, and signage, making them indispensable in modern manufacturing and infrastructure projects.
