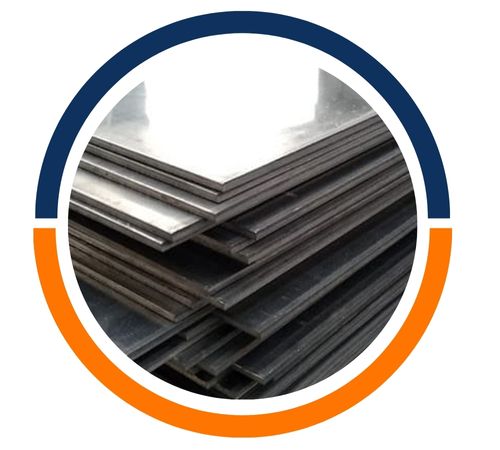

For any project demanding a material that is both exceptionally versatile and reliable, Badar Aluminium in Manama, Bahrain is your trusted partner for Aluminium 1050 sheets and plates. We take pride in supplying this fundamental grade, known for its outstanding workability and pure composition, to industries across the region and beyond. Our commitment lies in providing high-quality materials that form the solid foundation for your most critical fabrication needs, backed by our deep expertise and dedication to customer satisfaction.
At the heart of 1050 aluminium is its high purity, consisting of at least 99.5% aluminium. This simple composition gives the metal its distinct advantages. It features excellent corrosion resistance, high electrical and thermal conductivity, and a notably low density. Mechanically, it is a relatively soft and ductile material, which means it can be easily formed and shaped without losing its integrity. While it doesn’t achieve the high strength of alloyed grades, its superb malleability is its greatest asset for many applications.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Badar Aluminium based in Manama, Bahrain is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| Product | Thickness | Weight |
|---|---|---|
| 1050 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| 1050 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| 1050 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| 1050 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| 1050 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| 1050 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| 1050 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| 1050 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| 1050 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| 1050 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| 1050 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| 1050 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| 1050 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| 1050 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| 1050 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| 1050 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| 1050 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| 1050 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| 1050 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| 1050 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| 1050 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| 1050 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| 1050 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| 1050 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
Yes, we offer custom sizes for Aluminium 1050 Sheets and Plates to meet specific project needs. Our team at Badar Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@badaraluminium.com
The unique properties of 1050 aluminium make it the go-to choice for a surprising range of applications. It is extensively used for chemical and food processing equipment, architectural flashings, and ductwork because of its resistance to corrosion. Its high conductivity makes it ideal for busbars and other electrical components. You’ll also find it in intricate spun light reflectors, nameplates, and decorative panels, where its easy formability allows for complex designs. Essentially, wherever a combination of formability, corrosion resistance, and conductivity is needed, 1050 aluminium excels.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
